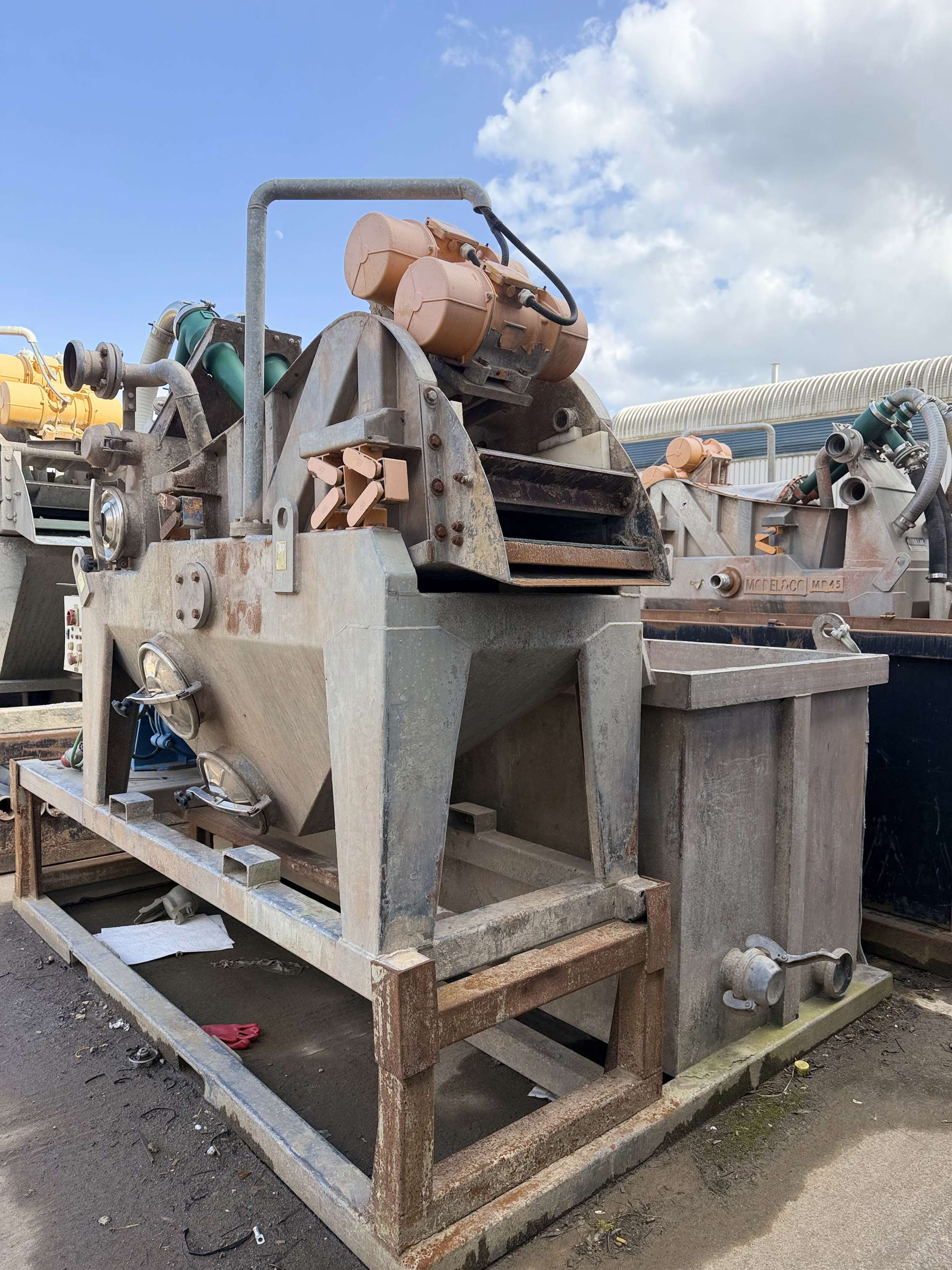

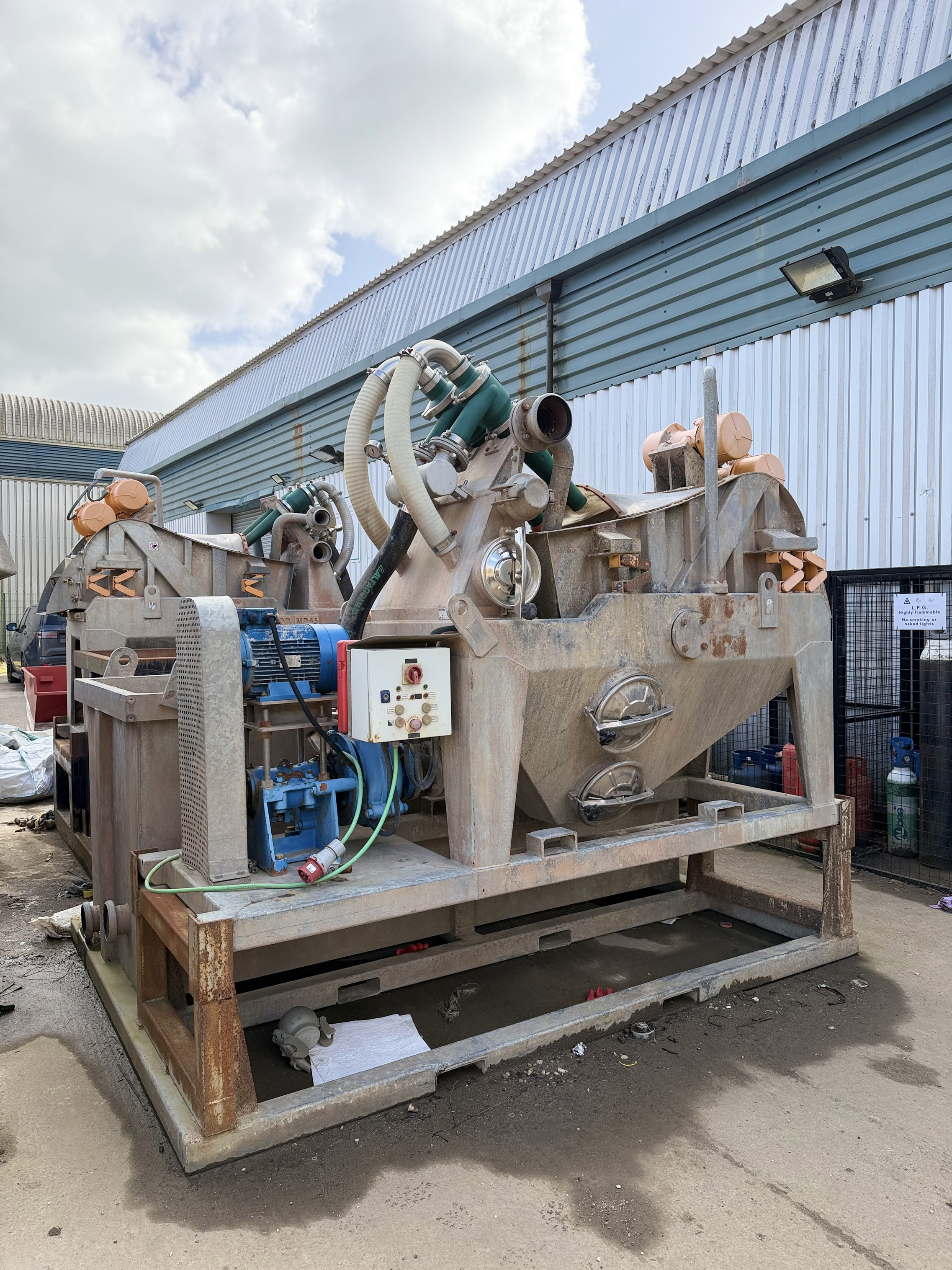

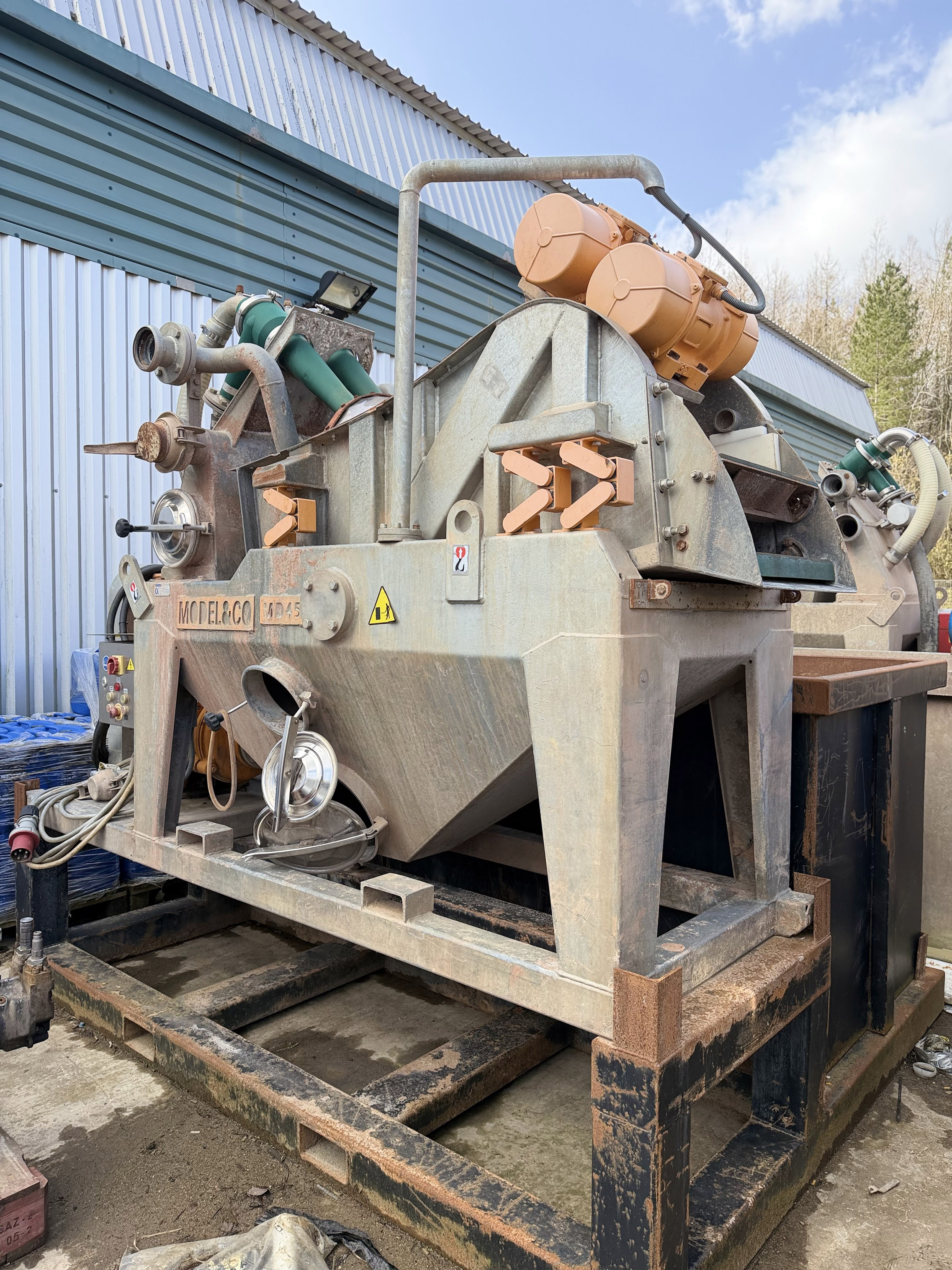

(X2) Model & CO MD45 Mud Desander 2021

£20,000

2021 Model & Co MD45 mud desander offered in excellent working condition.

A high-capacity mud cleaning and solids control unit designed for water well drilling, geothermal, geotechnical and foundation drilling applications. The MD45 efficiently removes sand and abrasive solids from drilling fluids, extending mud life, improving drilling performance and reducing pump and tooling wear.

A robust, compact and reliable unit that is ready to go straight to work. Inspection welcomed.

View Specification

Specification

  • Model&Co MD45 Mud Desander
  • Processing capacity: 40–45 m³/hr
  • Installed power: 9.7 kW
  • Primary vibrating screen: 540 x 1,375 mm
  • Secondary dewatering screen: 540 x 1,200 mm
  • Hydrocyclone: Ø100–160 mm
  • Cut point (D50): 20 microns
  • Maximum recommended mud density: 1.15 g/cm³
  • Sand content before treatment: 8–10%
  • Sand content after treatment: <1.5%
  • Overall dimensions: 2,900 x 925 x 1,870 mm
  • Weight: 1,270 kg

Features

  • High-efficiency hydrocyclone separation system
  • Twin vibrating screen arrangement
  • Compact skid-mounted design
  • Heavy-duty construction
  • Suitable for continuous drilling operations
  • Reduces drilling fluid consumption and disposal costs
  • Improves drilling efficiency and protects pumps and tooling

Additional Information

The Model&Co MD45 is a proven mud desander designed to maximise drilling fluid performance by efficiently removing sand and abrasive solids from the circulating mud system. With a processing capacity of up to 45 m³/hr, it is ideally suited to geothermal, water well, geotechnical and foundation drilling projects.
