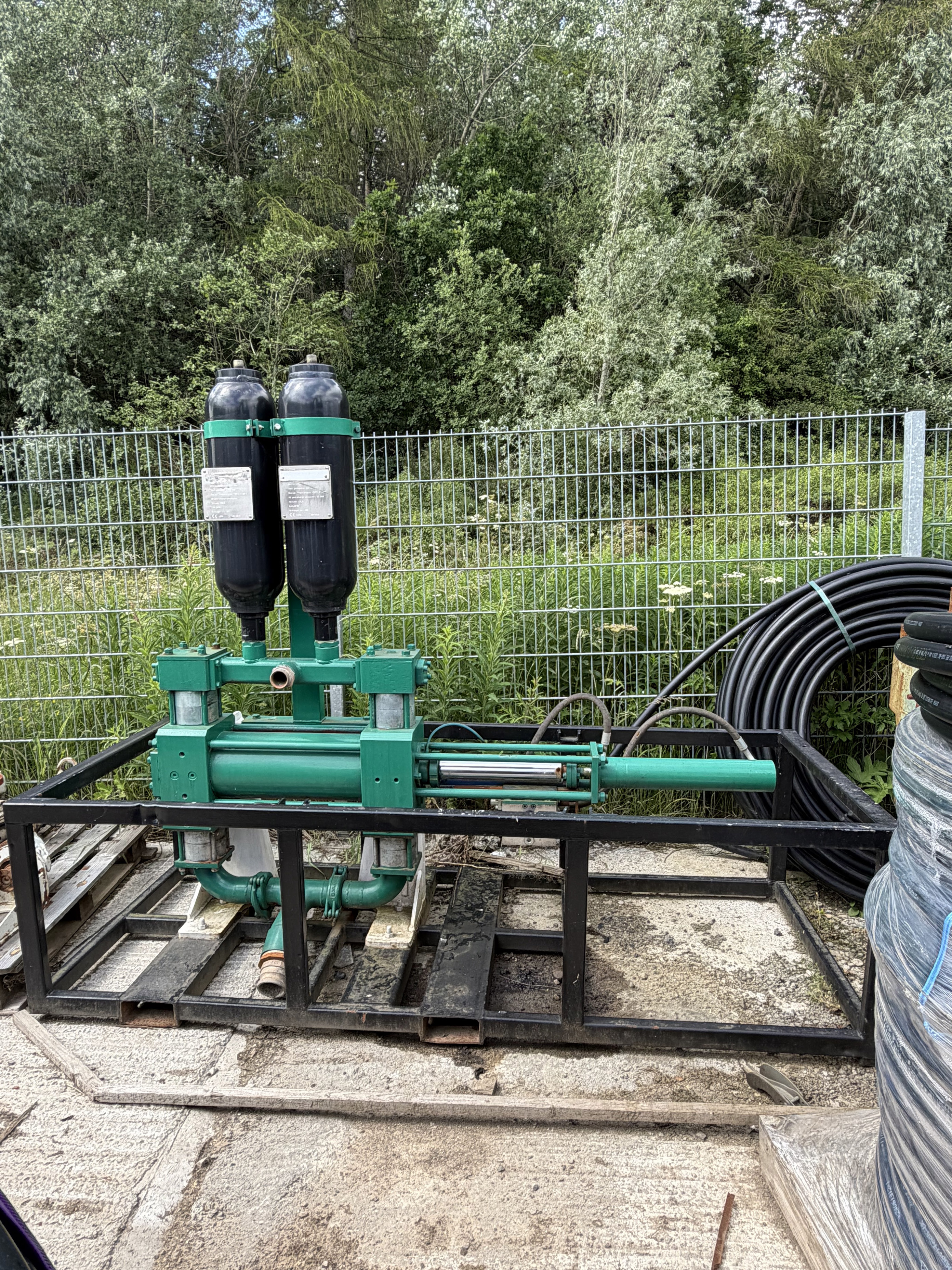

STA T60H Horizontal Double Acting Piston Mud Pump

£15,000

GeoDrill is offering this STA T60H Horizontal Double Acting Piston Mud Pump, purpose-built for demanding drilling, grouting and ground engineering applications.

Purchased new in 2022, this heavy-duty industrial pump has completed less than 150 operating hours, making it an excellent opportunity to acquire a high-performance mud and grout pump in outstanding condition.

The T60H features a double-acting piston design, delivering a smooth, continuous flow for drilling mud and grout while maintaining reliable performance in demanding site conditions. Its compact yet robust construction makes it ideal for geothermal, geotechnical, water well and civil engineering projects.

Collection from GeoDrill. Viewing is welcome by appointment

View Specification

Specifications

  • Manufacturer: STA S.r.l.
  • Model: T60H Horizontal Mud Pump
  • Double Acting Piston Pump
  • Piston Diameter: 190 mm
  • Piston Stroke: 400 mm
  • Flow per Double Stroke: 22 litres
  • Variable Flow Rate: 0–600 litres/min
  • Maximum Grouting Pressure: Up to 35 bar
  • Hydraulic Oil Requirement: 105 litres/min at 200 bar
  • Weight: Approx. 380 kg
  • Dimensions (L × W × H): 200 × 25 × 80 cm

Condition

  • Less than 150 operating hours
  • Well maintained
  • Ready for work

Included

  • STA T60H Horizontal Mud Pump
  • Spares Package: to include replacement piston rod & piston rubbers
