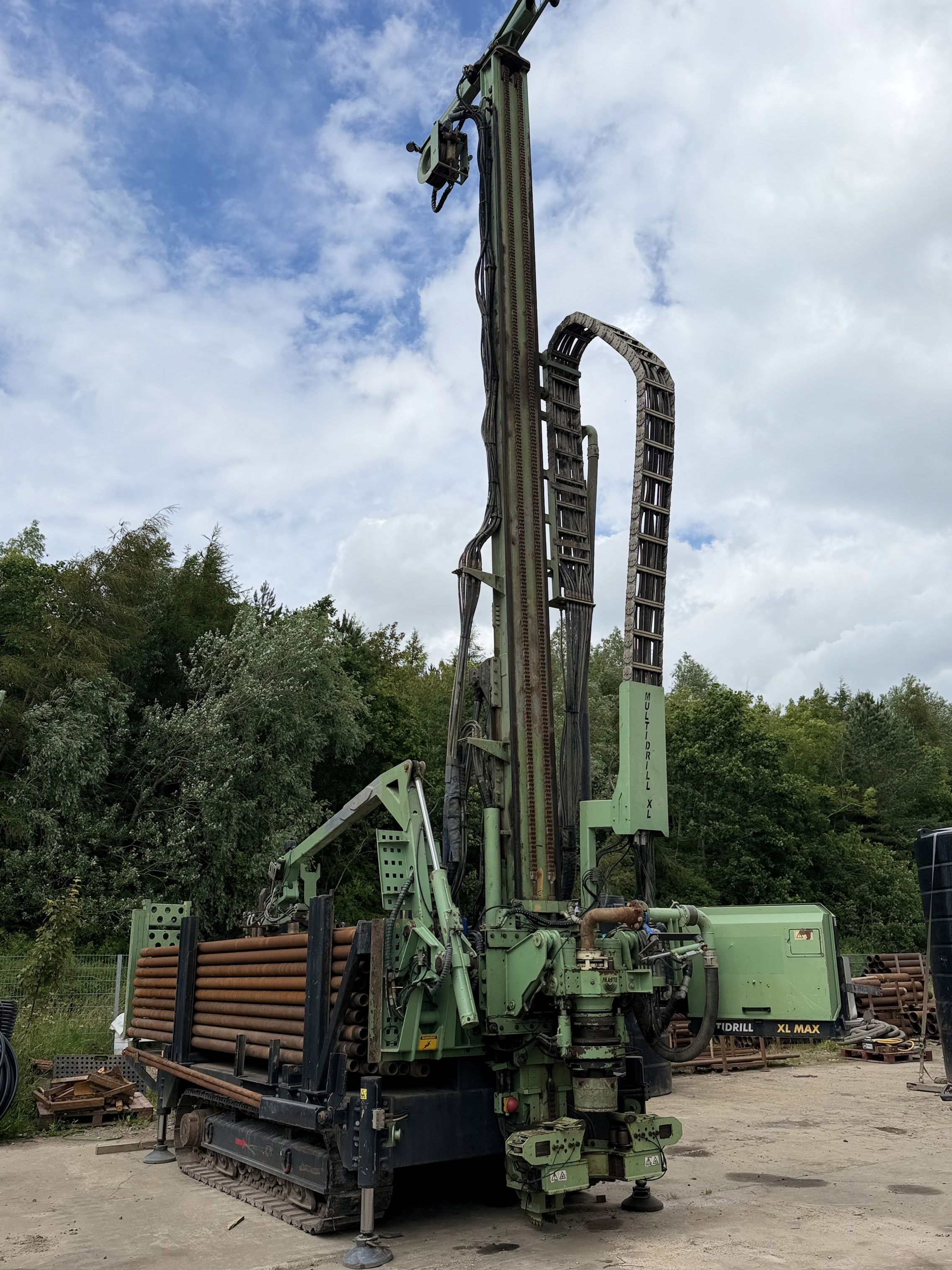

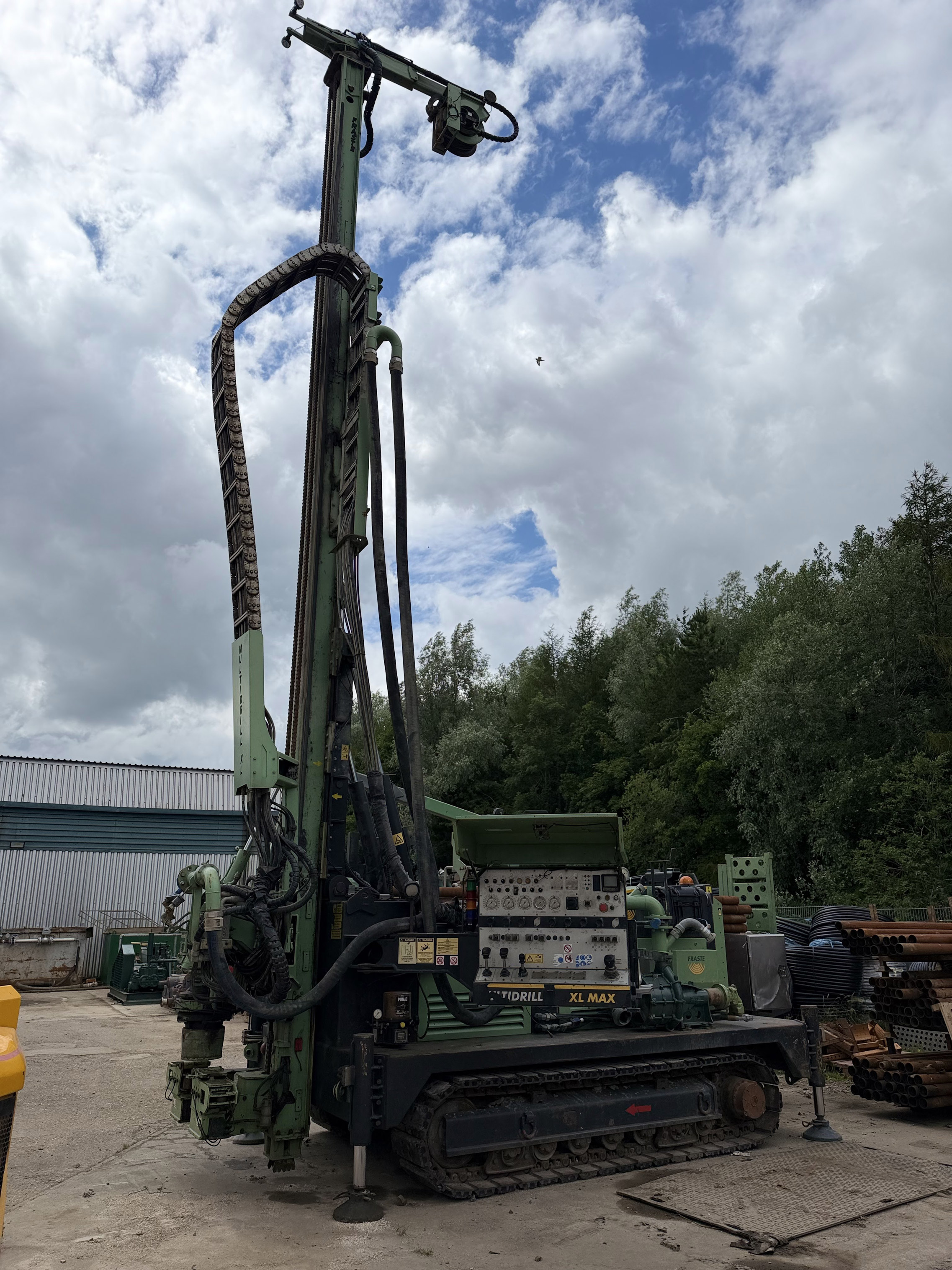

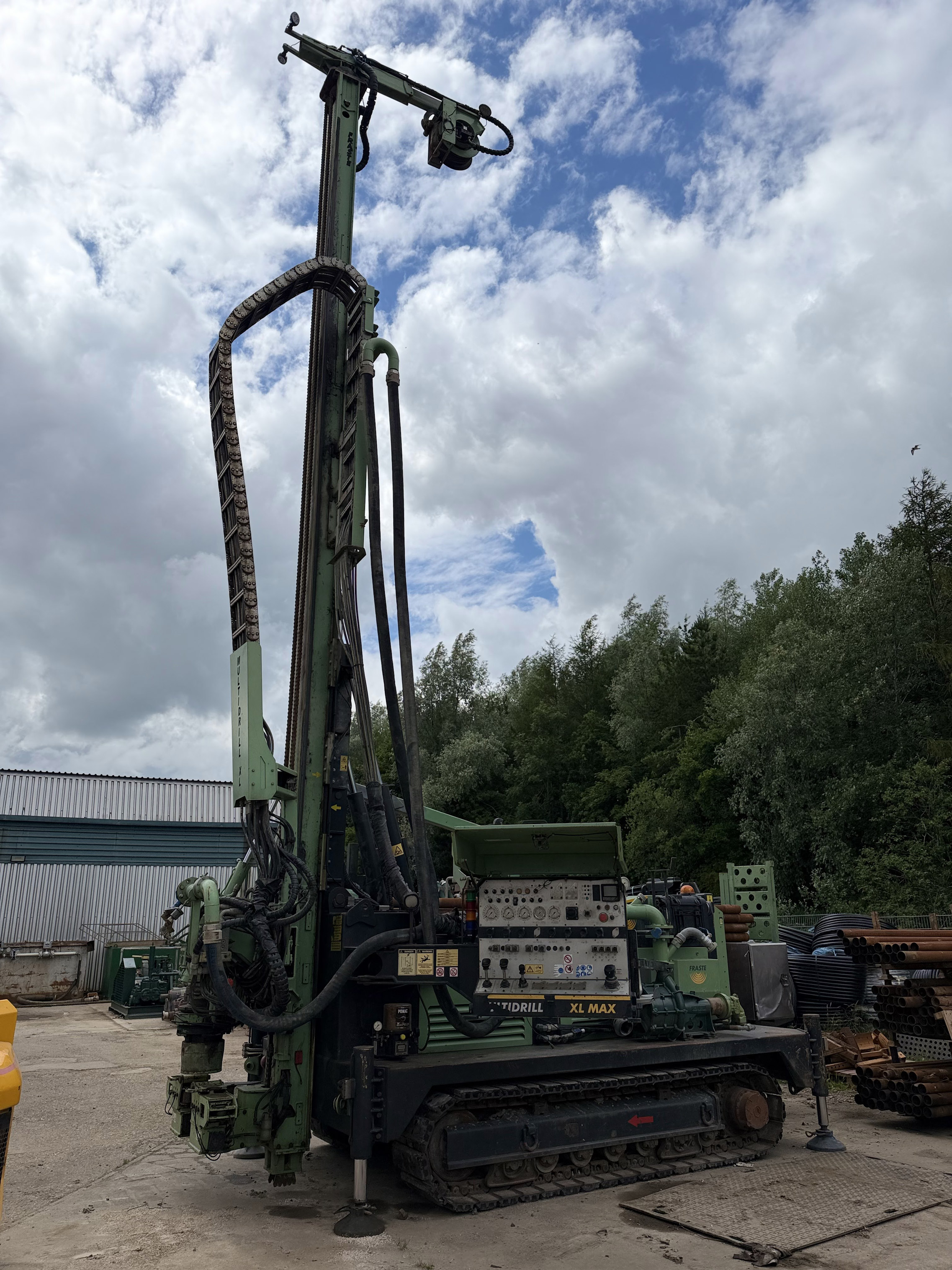

Fraste XL 170 Max 2019 Drilling Rig

£220,000

2019 Fraste XL 170 Max drilling rig offered in good working condition with 9,971 operating hours.

A powerful and highly productive drilling rig designed for water well, geothermal and ground investigation applications. Powered by a Caterpillar C4.4 diesel engine and equipped with an automatic rod handling system and automatic greasing system to maximise productivity and minimise operator effort.

A well-maintained machine supplied with a substantial rod package and automated rod handling capability, helping to improve drilling efficiency and reduce manual handling.

Ready to go straight to work. Inspection welcomed.

View Specification

Specification

  • Year: 2019
  • Operating Hours: 9,971
  • Caterpillar C4.4 diesel engine
  • 129 kW @ 2,200 rpm
  • EU Stage IV / EPA Tier 4 Final emissions compliant
  • Fraste R12D100 rotary head
  • 450 / 900 daNm rotary torque
  • 130 / 65 rpm rotary speeds
  • Maximum pull-up force: 8,000 daN
  • Maximum pull-down force: 6,800 daN
  • Rotary head stroke: 7,100 mm
  • Rod length: 5,000 mm
  • Counterslide stroke: 1,000 mm

Hydraulic Clamp

  • Clamping diameter: 60 – 280 mm
  • Clamping force: 14,000 daN

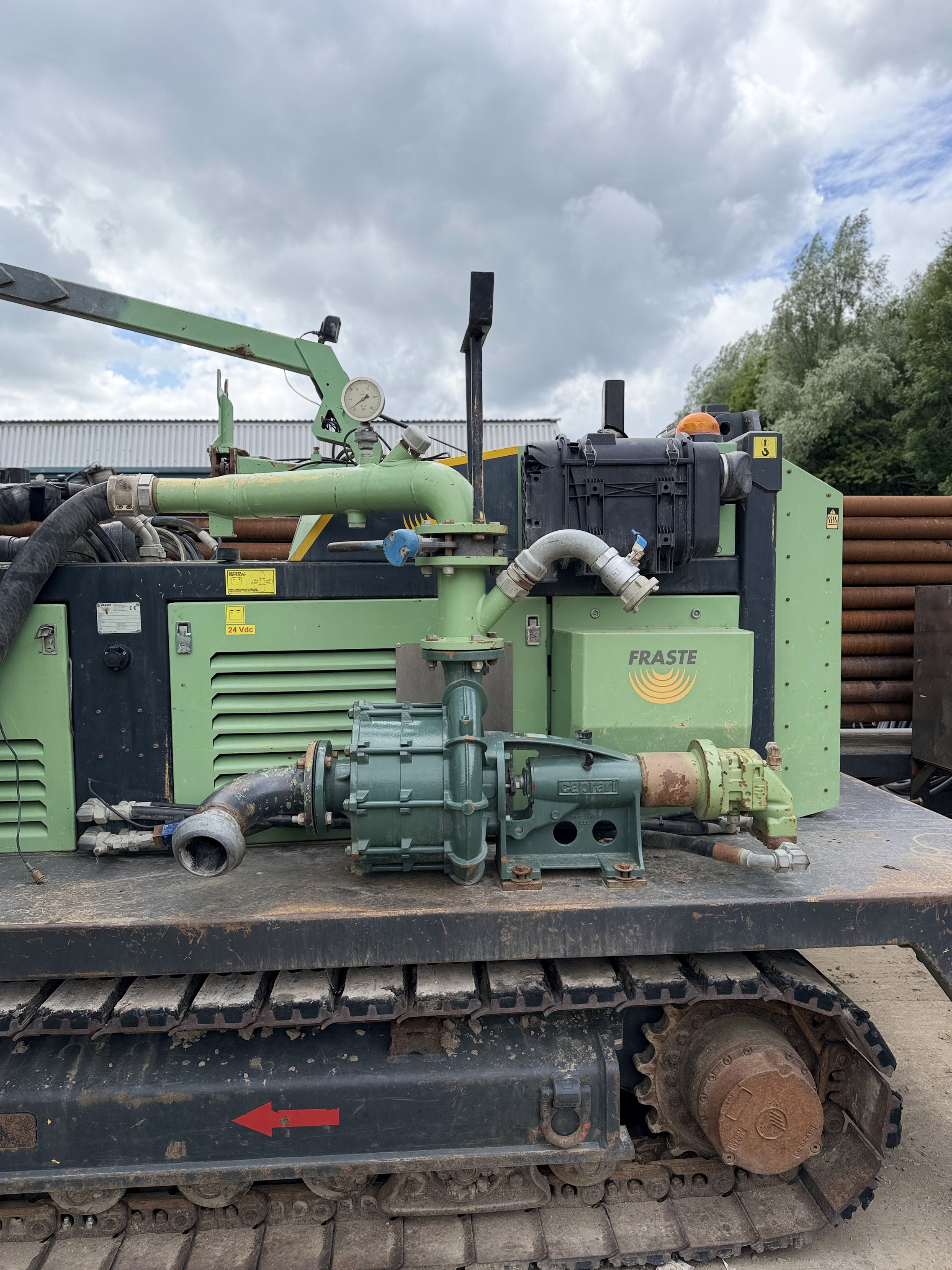

Mud Pump

  • Caprari MEC MR80 3/2
  • Capacity: 3,000 l/min
  • Pressure: 11 bar

Machine Data

  • Operating weight (without rods): 13,800 daN
  • Operating weight (with rods): 16,650 daN
  • Hydraulic oil capacity: 340 litres
  • Fuel tank capacity: 230 litres
  • Fuel reserve: 40 litres
  • DEF/AdBlue tank capacity: 19 litres
  • 24V electrical system

Included

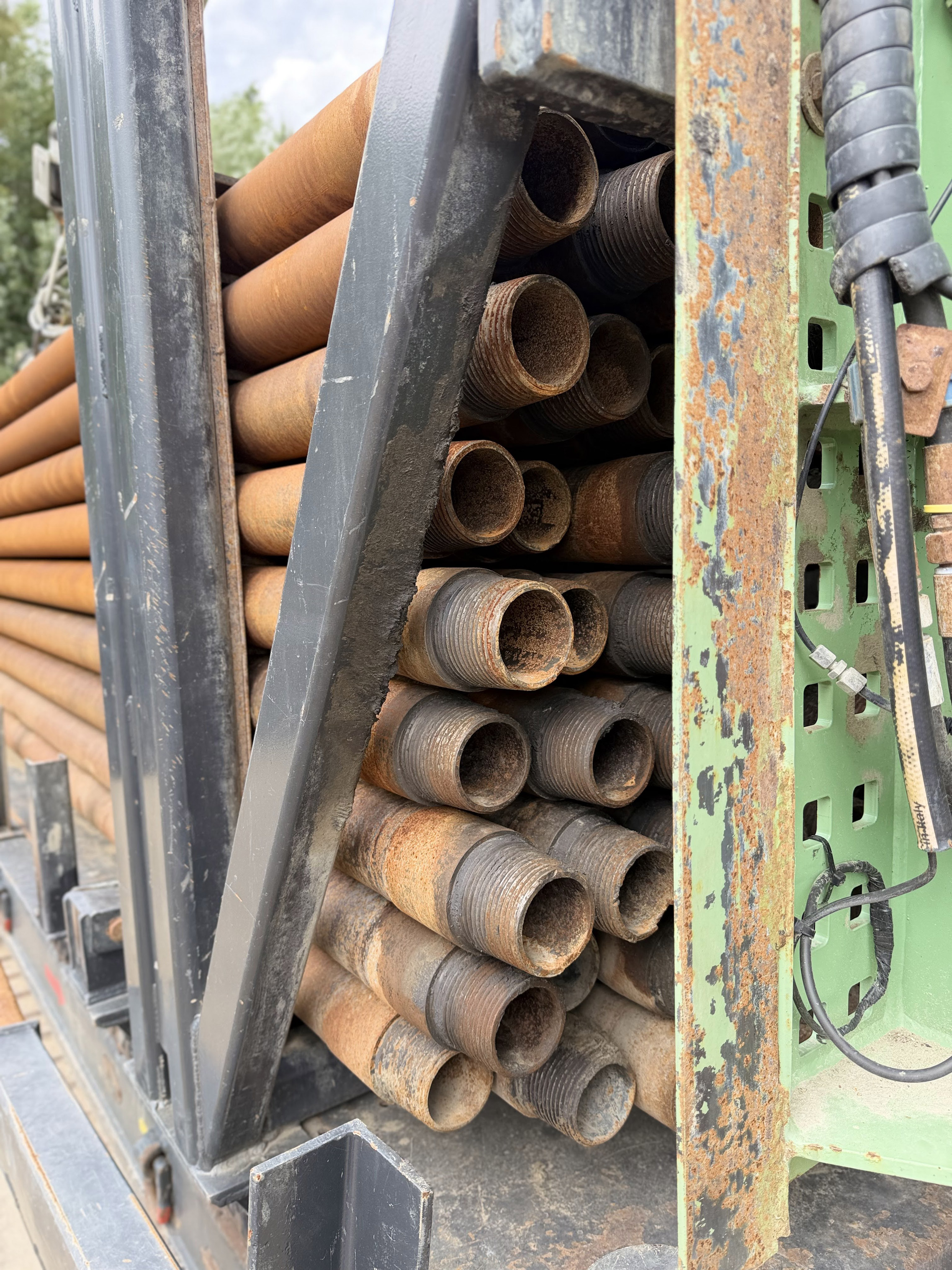

  • 55 x 5m drill rods

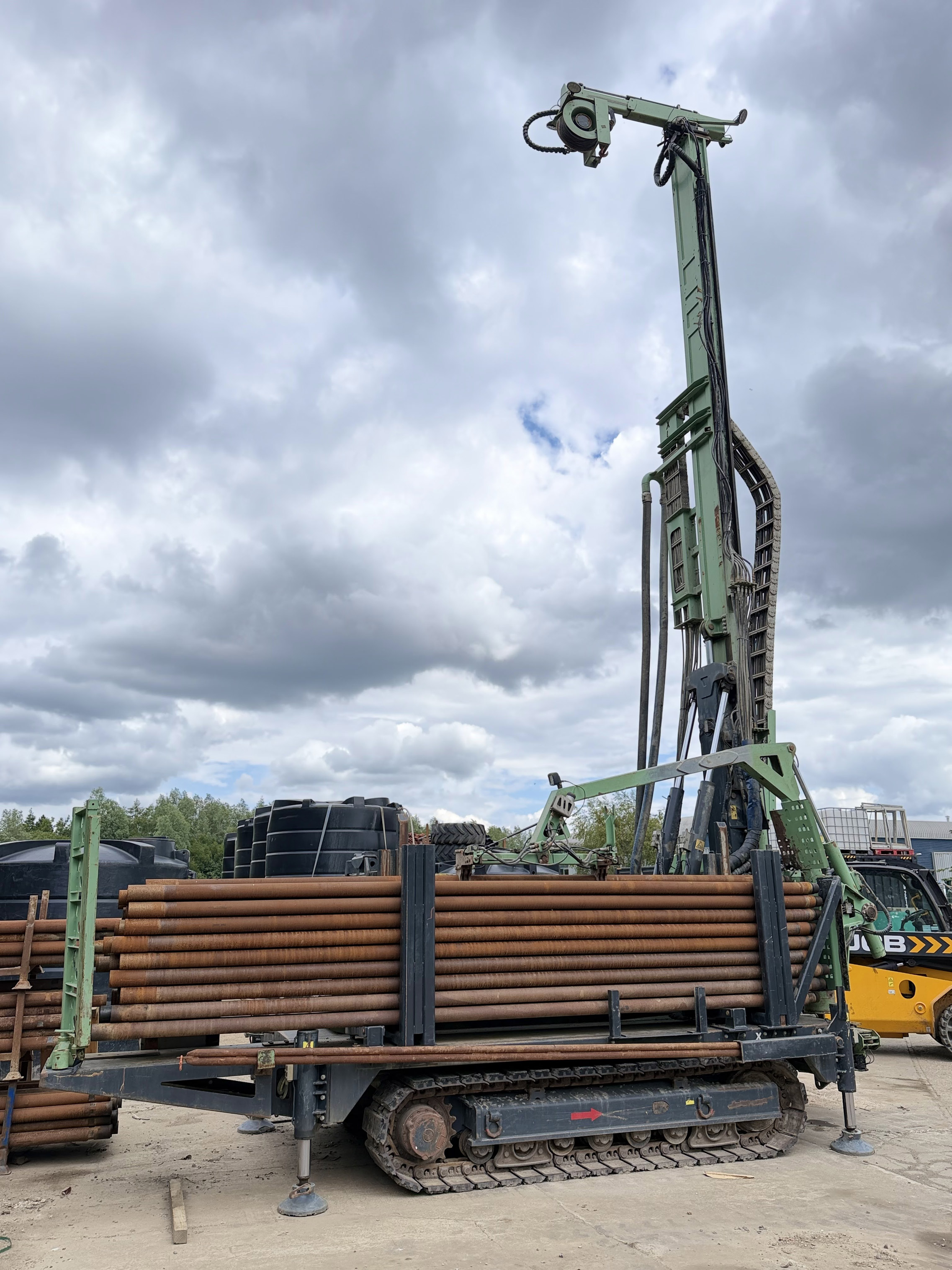

  • Automatic rod handling system

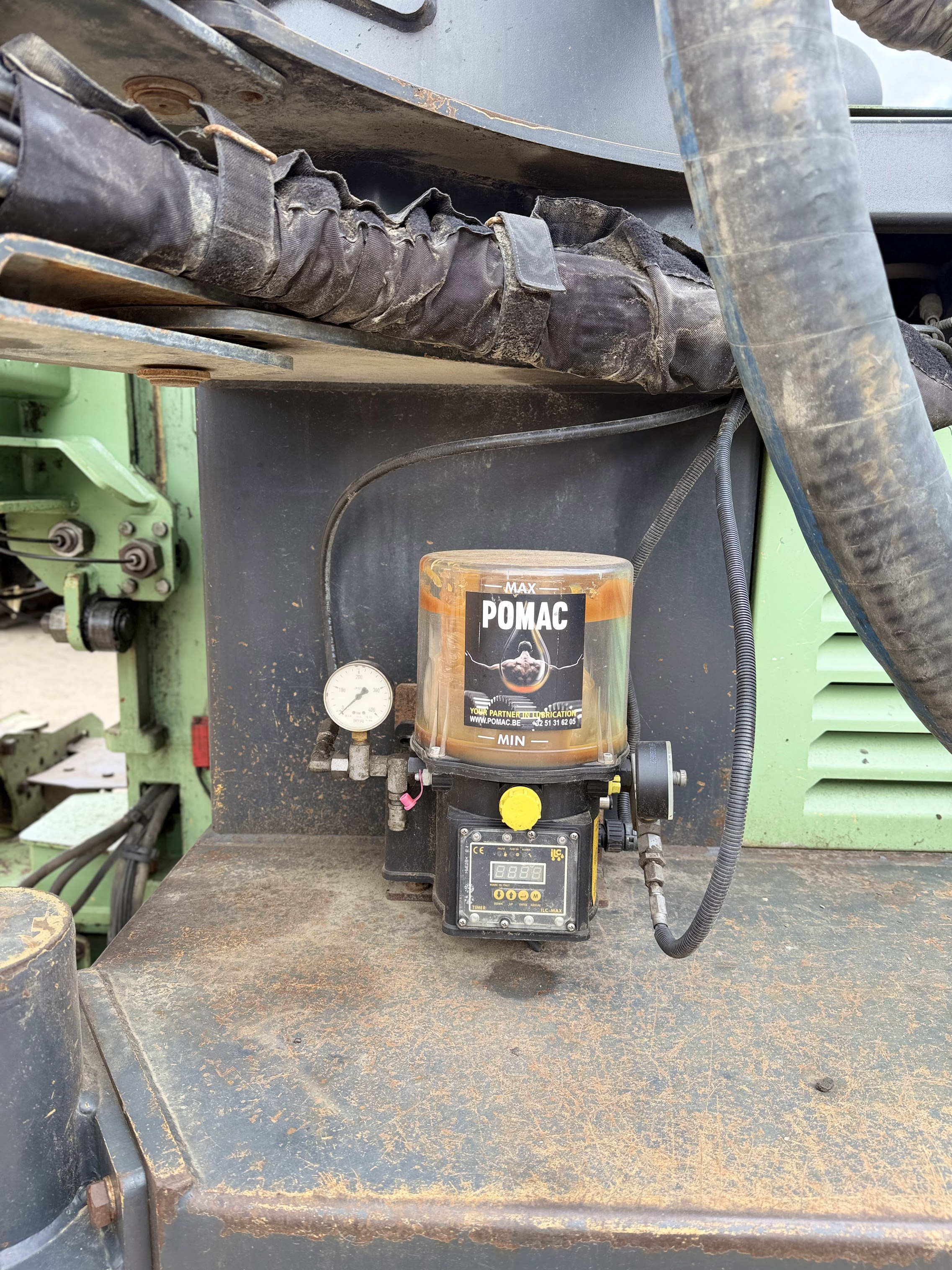

  • Automatic greasing system
