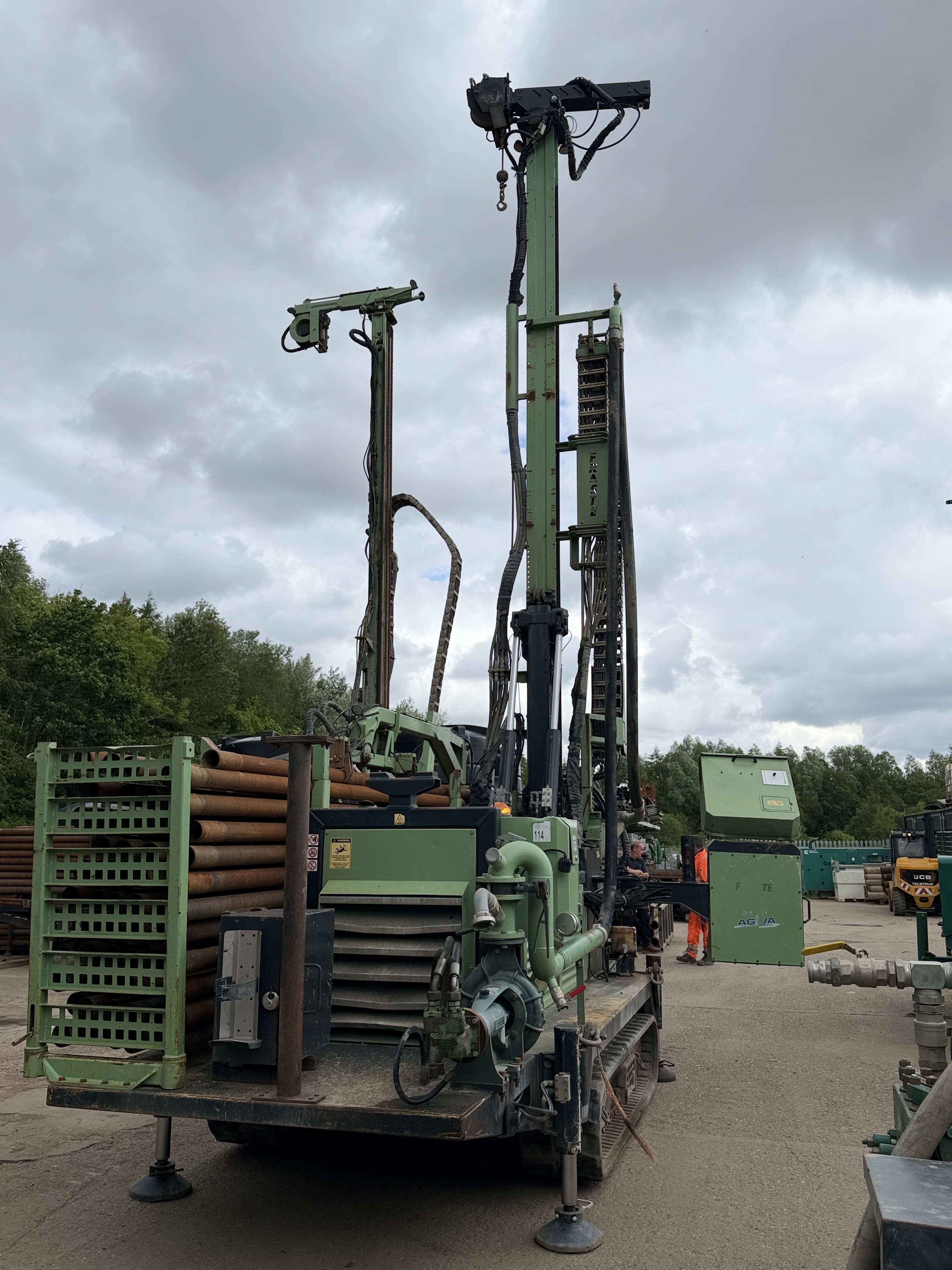

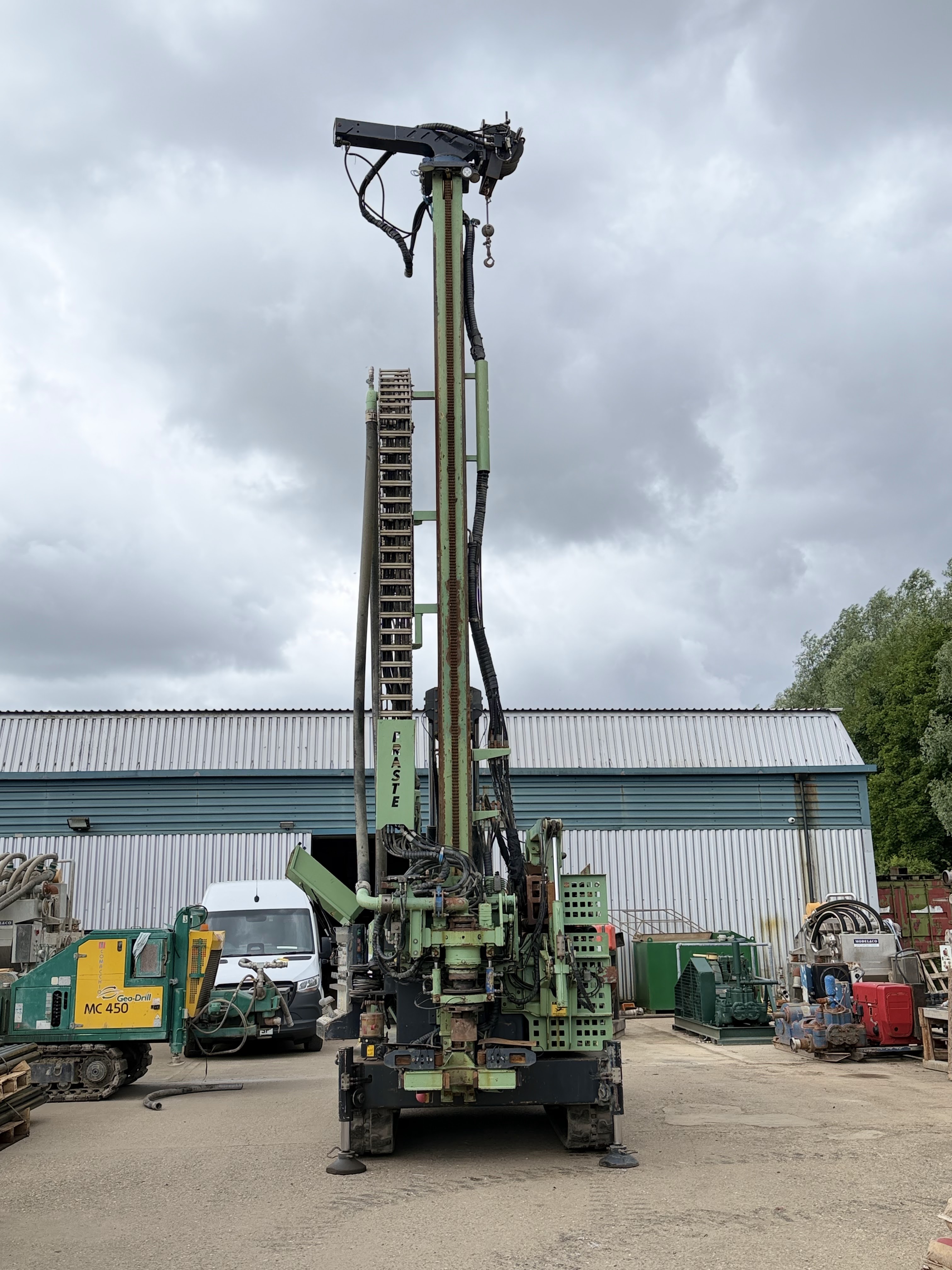

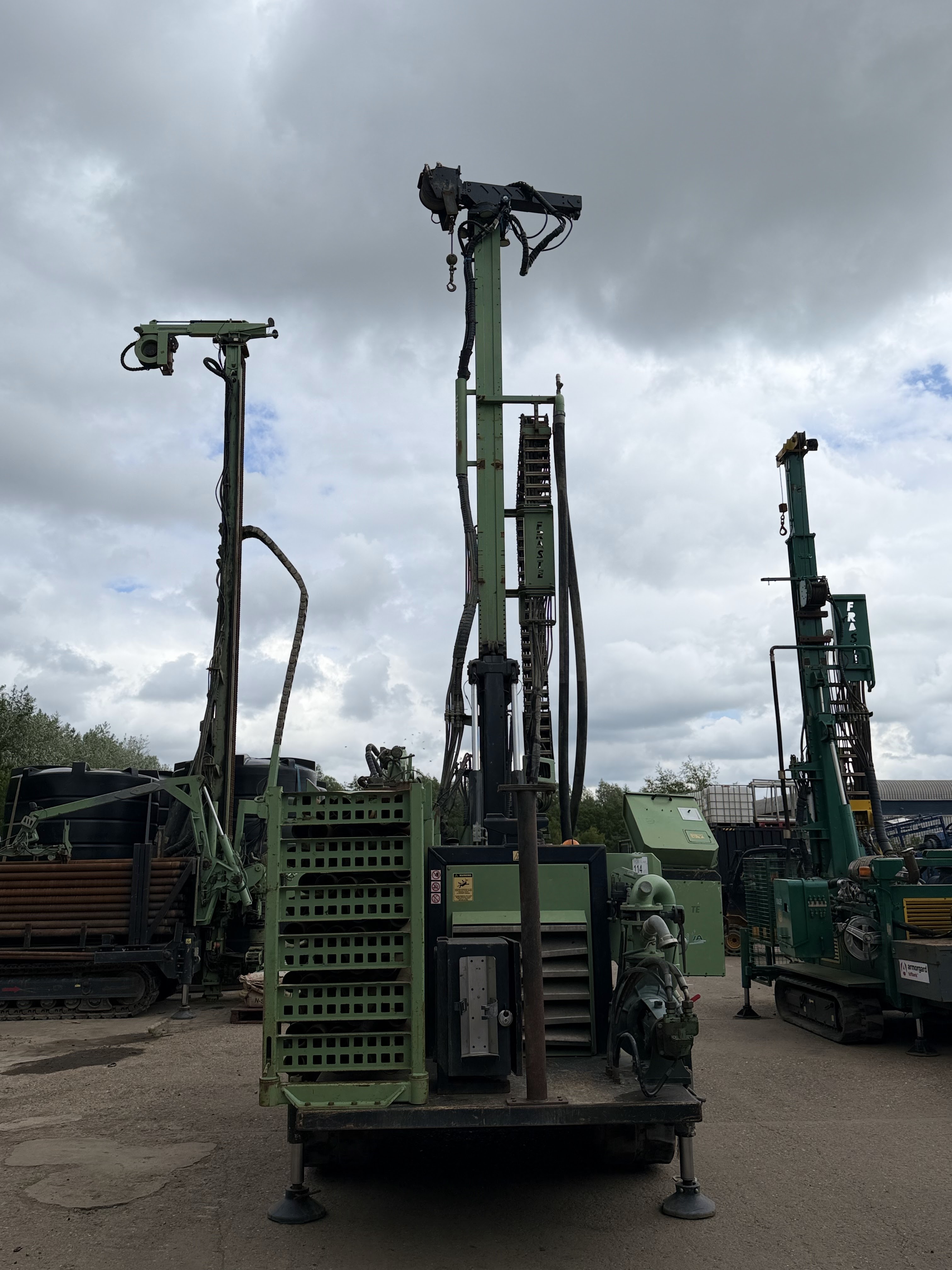

Fraste ML Max 2019 Drilling Rig

£180,000

2019 Fraste ML Max drilling rig offered in good working order with 9,154 operating hours. This versatile and compact drilling rig is well suited to water well, geothermal, ground investigation and geotechnical drilling applications.

Powered by a Caterpillar C4.4 diesel engine and fitted with an automatic rod handling system, the machine is supplied with 55 x 4m drill rods and an automatic greasing system, providing efficient operation and reduced maintenance requirements.

A well-maintained machine ready for work, offering a practical combination of performance, reliability and operator efficiency. Inspection welcomed. Contact for further information, photographs or viewing arrangements.

View Specification

Specification

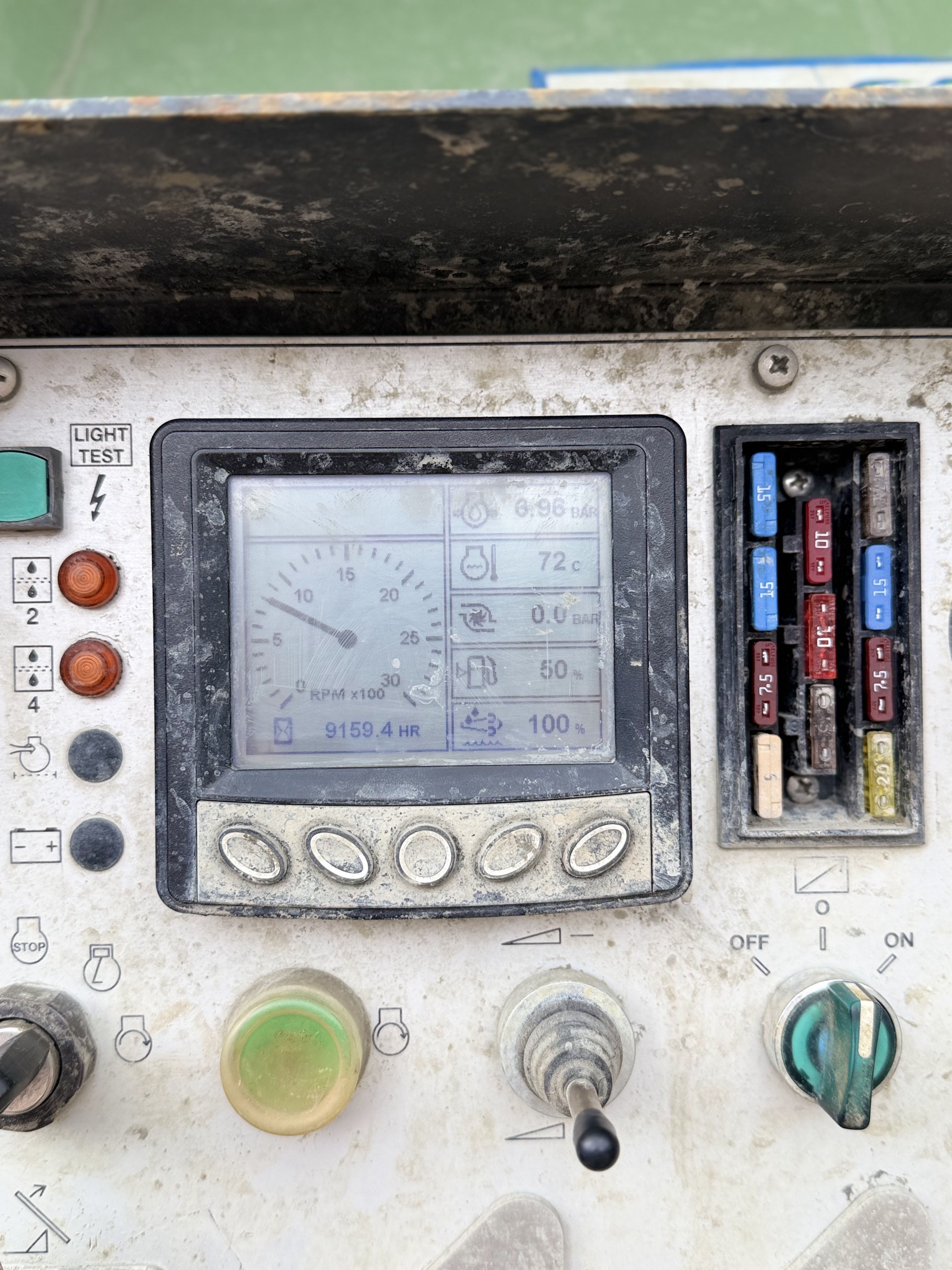

  • Operating Hours: 9,154
  • Engine: Caterpillar C4.4 Diesel
  • Engine Power: 110 kW @ 2,200 rpm
  • Emissions: EU Stage III/B / EPA Tier 4 Final
  • Electrical System: 24V

Drilling Performance

  • Maximum Pull-Up Force: 5,000 daN
  • Maximum Pull-Down Force: 3,500 daN
  • Rotary Head: Fraste R06D100
  • Injection Swivel Internal Diameter: 100 mm
  • Rotary Torque: 235 / 470 daNm
  • Rotary Speed: 160 / 80 rpm

Drilling Mast

  • Rotary Head Stroke: 5,600 mm
  • Drilling Rod Length: 4,000 mm
  • Counterslide Stroke: 500 mm

Hydraulic Clamp

  • Clamping Diameter: 40–250 mm
  • Clamping Force: 14,000 daN

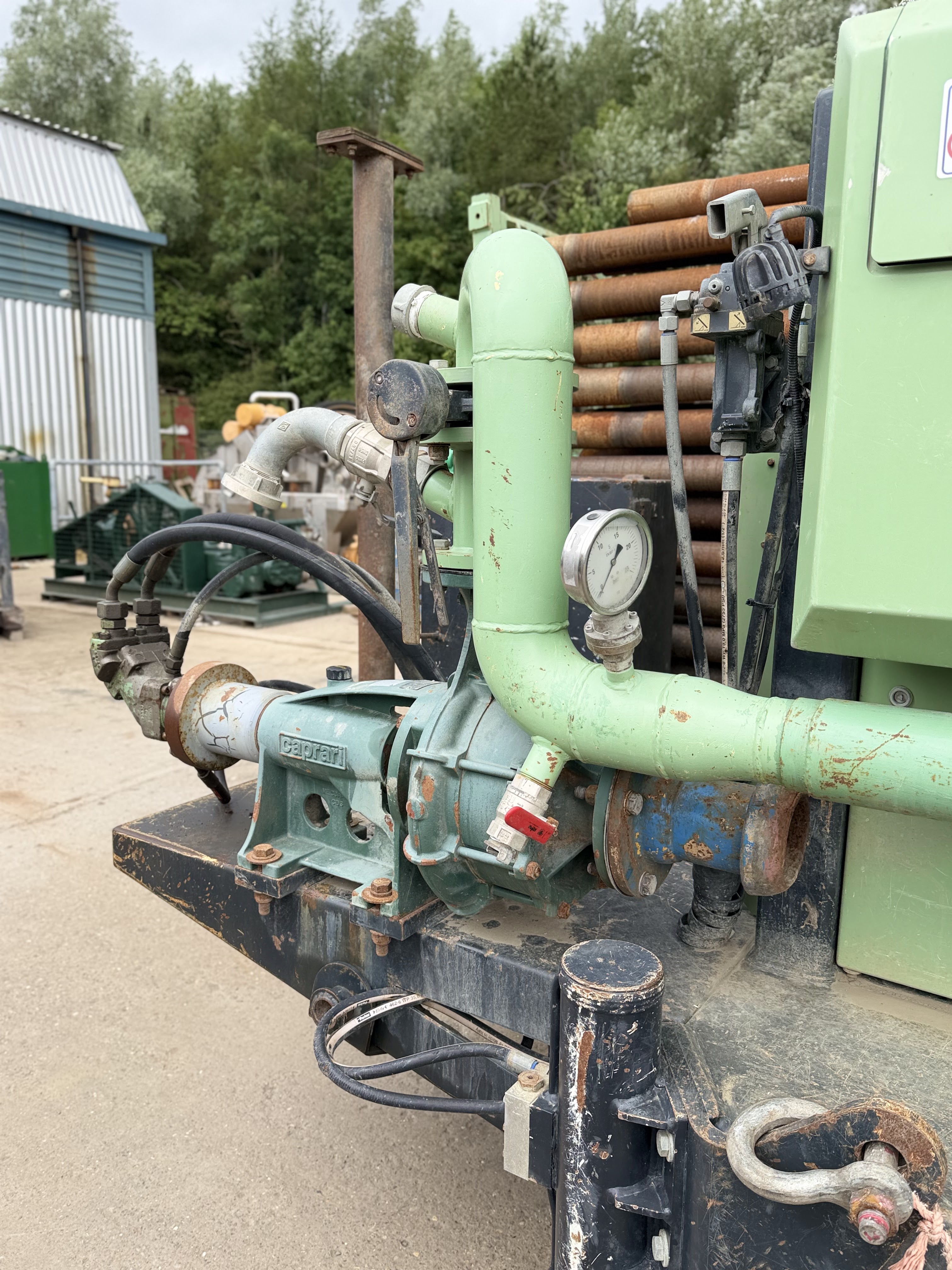

Mud Pump

  • Manufacturer: Caprari
  • Model: MEC MR 80 3/2 A
  • Capacity: 3,000 l/min
  • Pressure: 11 bar

Capacities

  • Hydraulic Oil Tank: 360 litres
  • Fuel Tank: 170 litres
  • Fuel Reserve: 35 litres
  • DEF/AdBlue Tank: 19 litres

Weights

  • Operating Weight (without rods): 8,800 daN
  • Operating Weight (with rods): 11,400 daN

Included Equipment

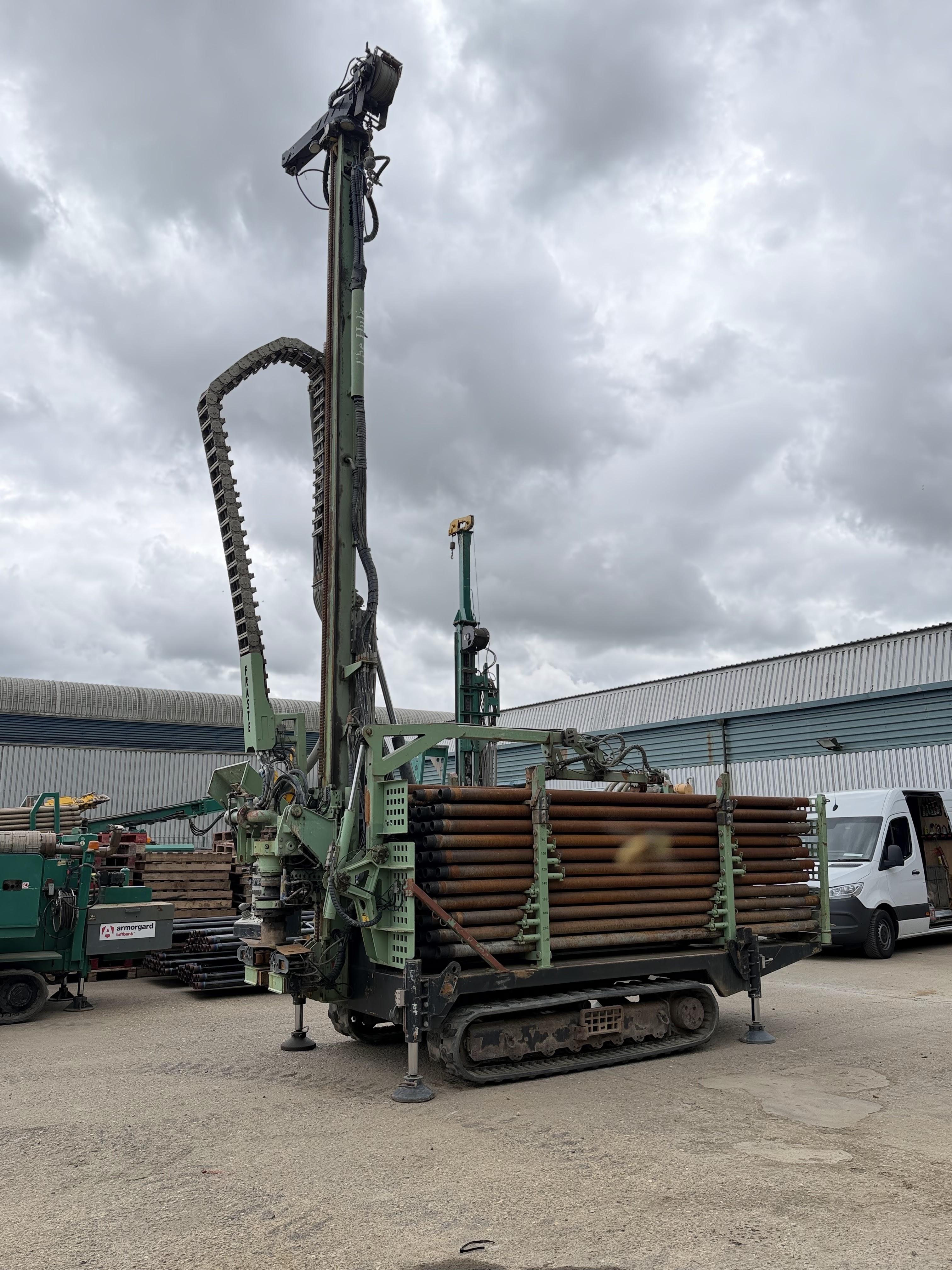

  • 55 x 4m drill rods
  • Automatic rod handling system

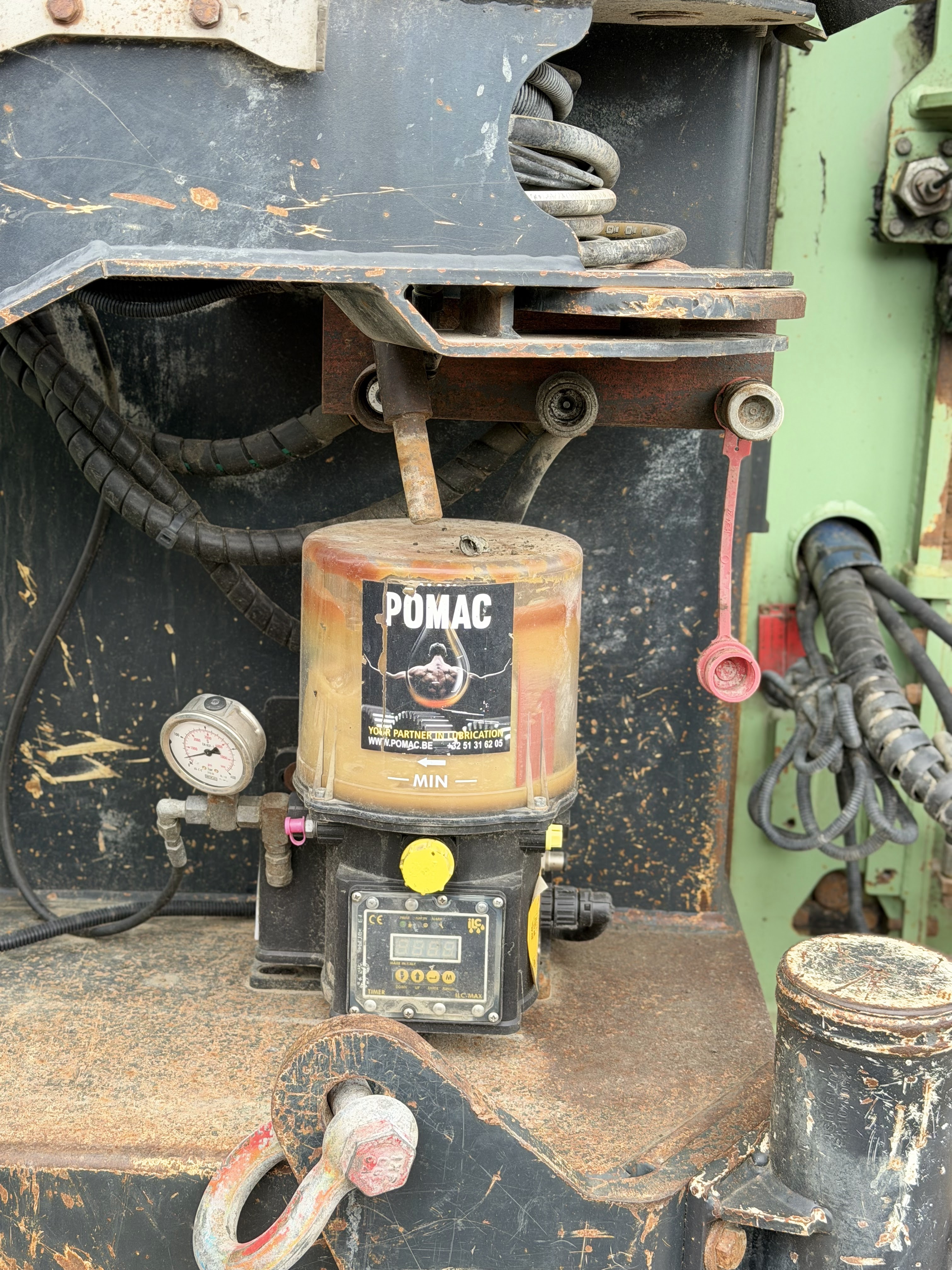

  • Automatic greasing system (autogreaser)
